Chiptune Alchemy 2: Famicom Expansion Audio

The Hidden Soundscapes of the Famicom

Welcome back, everyone, to Chiptune Alchemy. This Part 2 continues where we left off in the previous post, discussing the specific technology of the NES and the additional capabilities the Famicom introduced. We broke down how composers used sheer engineering magic to squeeze unforgettable melodies out of the original NES and Japanese Famicom’s standard 5-channel limits. But if you think the 8-bit era was defined entirely by those rigid boundaries, you’ve only heard half the story.

While the international Nintendo Entertainment System (NES) was locked into a standard audio profile, its Japanese counterpart, the Family Computer (Famicom), possessed a secret weapon.

Let’s look at the hidden architecture of the 8-bit audio and explore how custom microchips turned game cartridges into modular synthesizers.

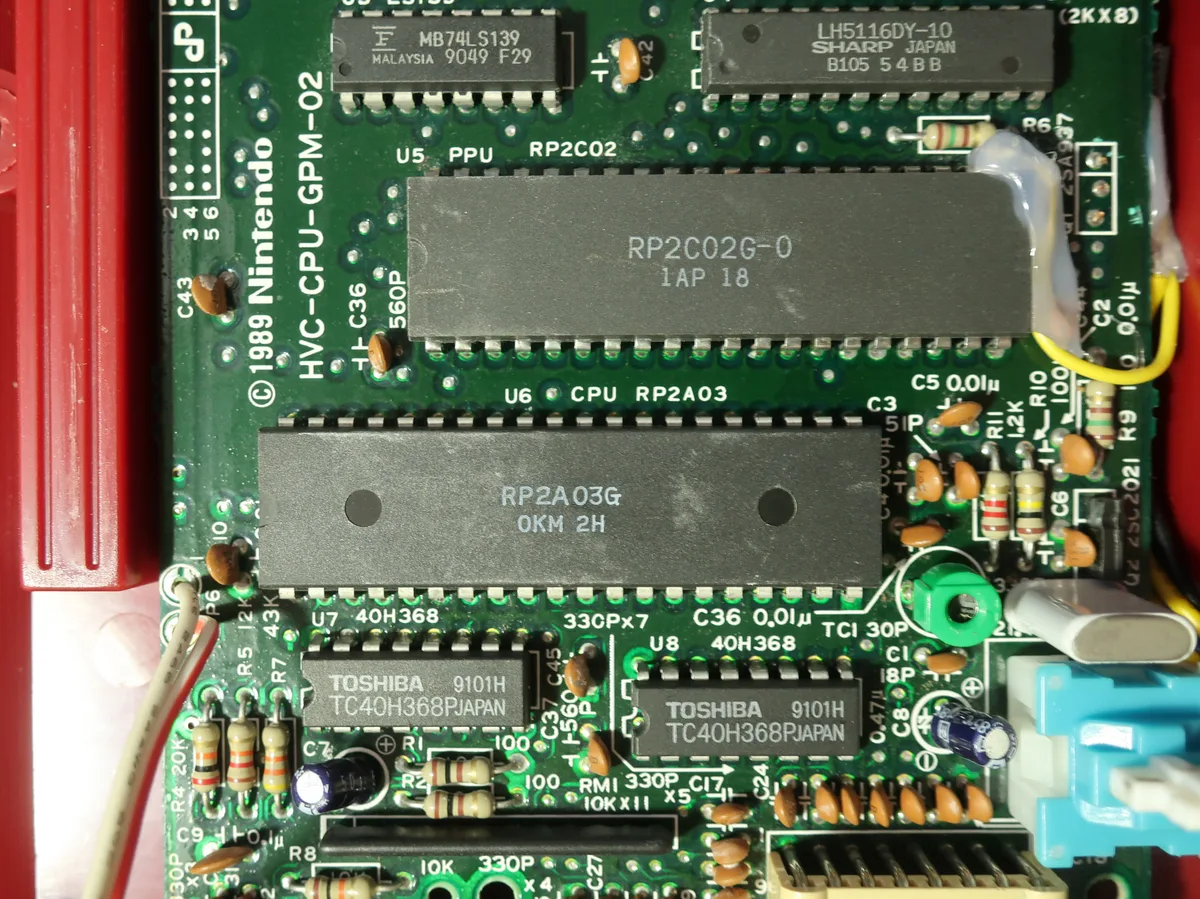

Under the hood, the Western NES and the Japanese Famicom shared the exact same audio processing unit (APU). Built directly into the console’s main processor, this chip delivered five standard audio channels (we covered the specifics in the last post here):

• 2 Pulse Wave Channels
• Triangle Wave Channel
• Noise Channel
• DPCM Sample Channel

However, the Japanese Famicom had a brilliant design feature: natively integrated cartridge audio routing. The Famicom’s cartridge slot included two dedicated physical pins. This allowed the console to send its audio directly into the game cartridge, mix it with extra hardware on the game board itself, and send a massive, layered sound back out to the speakers.

When Nintendo redesigned the console as the front-loading NES for the West, they completely cut those extra audio pins out of the 72-pin slot. This single decision split video game audio history in two.

The Famicom Audio Expansion Vault

Because Japanese developers weren’t limited to the console’s built-in sound chip, they started engineering custom microprocessors directly inside the game packs. By adding extra channels, wave tables, and synthesis modules, these chips altered the capabilities of the hardware.

The Famicom Disk System (Ricoh RP2C33)

Released in 1986, this floppy-disk add-on introduced the Ricoh RP2C33 chip. It added one extra sound channel powered by wave table synthesis. Instead of basic square waves, it allowed games to use smoother, richer custom waveforms. This chip gave early Japanese games a distinctive sound that most people could easily hear the apparent difference in the sound/timbre. Some prefer it; some don’t, but I have found that it really depends on the game and the compositions themselves. As with many things, you will have groups of people that preach the FDS version of a soundtrack is better regardless, and others who prefer the NES. I have heard worse-sounding versions of soundtracks on the FDS as compared to the NES, while on other games they might have been originally composed with the extra capabilities in mind, creating bigger, thicker, or more complex orchestrations than what the NES was able to handle. Meaning, when the game is ported to the NES, concessions must be made to play on the NES, and sometimes that means losing certain parts of a melody, harmony, thick basslines, or drums, etc.

We are gonna cover some specific examples of these add-on technological audio abilities.

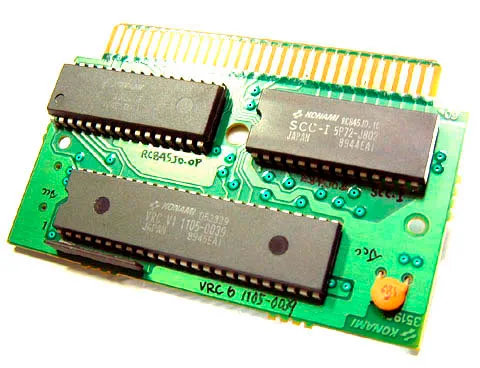

Konami VRC6

Released in 1989, Konami’s Virtual ROM Controller 6 (VRC6) was a powerhouse memory mapper and audio chip. It added three extra audio channels: two independent pulse waves and one sharp Sawtooth wave.

The most famous demonstration of this hardware is Konami’s Akumajō Densetsu (the Japanese version of Castlevania III: Dracula’s Curse). The extra sawtooth and square wave channels gave the score a driving, thick, orchestral weight.

Here is a mathematical breakdown:

Standard APU Output: 2x Pulse, a Triangle, & a Noise channel

+

Konami VRC 6: 2x VRC6 Pulse, & a Sawtooth channel

Creating a potential 7-channel dense soundtrack

Konami VRC7

Released late in the lifecycle in 1991, the VRC7 brought advanced arcade technology to the 8-bit platform. It packed a whopping six channels of two-operator FM (Frequency Modulation) synthesis. This chip shifted the Famicom away from traditional retro chiptune bleeps entirely, producing metallic, instrument-like textures. Heard exclusively in the sci-fi RPG Lagrange Point, the VRC7 sounds so advanced that listeners often mistake it for a 16-bit Sega Genesis soundtrack (which we will cover in the next blog).

Namco 163

Developed by Namco in 1988, this expansion chip was a massive technical leap. It included 128 bytes of internal RAM, allowing developers to program anywhere from 1 up to eight extra wavetable synthesis channels simultaneously. Running all eight extra channels caused a slight hardware slowdown that lowered the audio sample rate, but games like King of Kings and Erika to Satoru no Yume Bouken used this chip to generate complex, multi-channel instrumentation with an almost ethereal sound quality.

Sunsoft 5B

Introduced in 1991, the Sunsoft 5B chip added three extra square wave channels, complete with a shared envelope filter and noise generator. This chip was implemented in only one game: the rare platformer. The 5B chip filled out the background audio space, allowing the composer to layer jazzy bass movements and complex pop melodies over the game’s bright levels

The Cost of the Western Port

Because the Western NES ignored the cartridge audio expansion lines, Japanese developers had to strip their soundtracks down to the bone when porting games to North America and Europe.

The comparison between Akumajō Densetsu (Famicom) and Castlevania III: Dracula’s Curse (NES) remains a stark example of this hardware limitation. To make the game work on the Western NES, Konami’s composers had to compress the rich, 7-channel VRC6 symphonies back down into the standard 5-channel pool. Tracks like “Beginning” lost their driving sawtooth basslines and echoing mid-tones, making the American version sound noticeably thinner and flatter.

Here is a summary of the upgraded audio capabilities:
Famicom Disk System – 1 Custom Wavetable Synthesis Channel
Konami VRC6 – 2 Extra Pulse Channels + 1 Sawtooth Channel
Konami VRC7 – 6 Channels of 2-Operator FM Synthesis
Namco 163 – Up to 8 Programmable Wavetable Channels
Sunsoft 5B – 3 Extra Square Wave Channels + Envelope Filter

(Bonus Secret) Reclaiming the Lost Audio

If you try to run an imported Akumajō Densetsu cartridge on a Western NES using a standard pin adapter, you won’t hear that sweet expansion music. The hardware pins on the console side are simply missing from the primary audio path.

However, the hardware community discovered an elegant workaround. The expansion audio paths are still wired into the bottom expansion port of the front-loading NES console. By performing a simple hardware modification soldering a single resistor or jumper wire between specific pins on the console’s main board—you can bridge that gap. This hardware mod mixes the expansion audio lines directly back into the console’s audio mixing circuit, allowing modified Western hardware to play Famicom expansion tracks via flash cartridges or adapters.

Thanks for joining us for Part 2 of Chiptune Alchemy! This wraps up our look at the modular sound expanders of the 8-bit generation. Get ready for Part 3 (Coming November 2, 2026), where we step into the 16-bit era with Sega Genesis and Super Nintendo!
